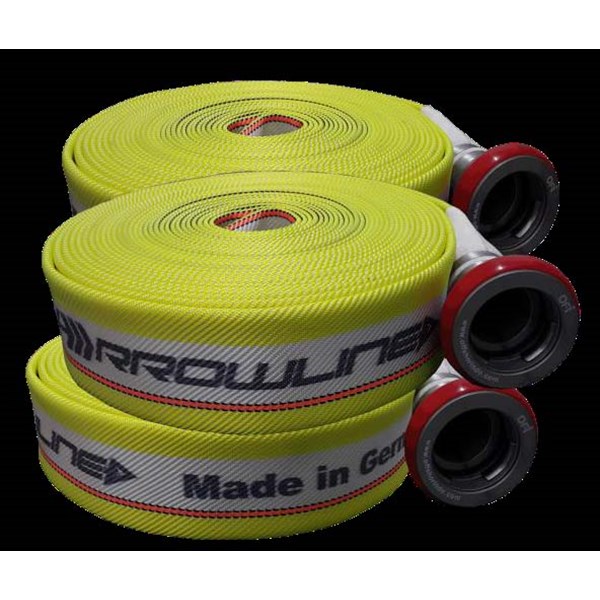

Detail SELANG PEMADAM ARROWLINE



ARROWLINE adalah selang municipal grade double colour jacket dengan EPDM rubber liner ringan yang memenuhi semua persyaratan dari NFPA 1961. Dirancang untuk digunakan sebagai selang attack handline dan diproduksi untuk service test pressure 398 psi (27.5 bar). Diproduksi dari bahan baku berkualitas dengan standar ketat.



General Features:

 Very lightweight and highly flexible (even at low temperature)

 Small coil diameter

 Mildew and rot-proof

 Easy to repair and maintenance free

 Suitable for use with C.A.F.S. and foam solutions

 Meet DIN 14811, MED 96/98/EC, NFPA 1961 standard

Fire Hose Type ARROWLINE Ø 1.5” ARROWLINE Ø 2.5” Working Pressure 25 bar (362 psi) 25 bar (362 psi) Service Test Pressure 27.5 bar (398 psi) 27.5 bar (398 psi) Kink Test Pressure 41.25 bar (598 psi) 41.25 bar (598 psi) Proof Test Pressure 55 bar (797 psi) 55 bar (797 psi) Bursting Pressure minimal 63.25 bar (917 psi) 63.25 bar (917 psi) Service Temperature -40°C up to + 100°C -40°C up to + 100°C

Jacket:

 Premium quality, double colour jacket made from 100% high tensile strength Silk-Polyester yarn

 Longitudinal Double-White and Double-Signal Yellow colour

 Circular woven in twill weave (substantially higher abrasion resistance compared to plain weave)
