Detail Kompresor SCBA DEUTSCHOMP

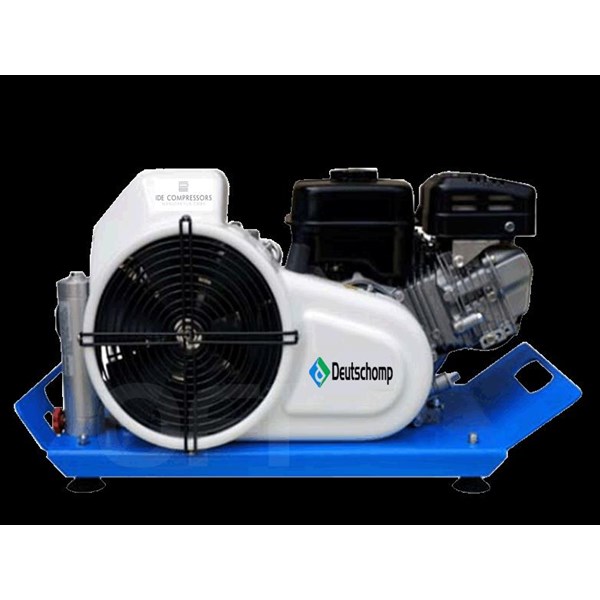

DEUTSCHOMP 100B high pressure breathing air compressors type is
manufactured by IDE Compressor Manufacturer (Germany) and
designed for Scuba, Fire Stations, Police, Military, Rescue and
Commercial units and driven by ROBIN-SUBARU Gasoline engine,
meanwhile other type optional driven by Electric.
STANDARD FEATURES:
Manufacturer: IDE COMPRESSORS (Germany)
Model: Deutschomp 100B
Capacity 100 L/min. / 3.5 cfm / 6.0 m3/h
Intake Pressure: Atmospheric (1 - 1.2 bar)
Working Pressure: 100-300 bar
Set Pressure Safety Valve: Setting according to
order, max. 310 bar
Dryer System: FT90, 165 m
3
@ 20
o
C
No of Stages: 4 stages
No of Cylinders: 4 cylinders
Power Consumption: 1.8 kW
End Pressure of Stage: 300 to 310 bar
Turn Direction: Counter Clock Wise
Cooling System: Air Cooled
Lubrication: Oil whizzer pin splash lubrication
Oil Volume crankcase: approx. 0.33 L
Oil Volume between Min. /Max. sign: 0.05 L
Oil type/ grade: mineral oil
Max Ambient Temperature: +5
o
C … 45
o
C (+43
F)
Max permissible inclination: 5
o
o
F … 113
o
C (only at max oil level)
Condensate drain: manually approx. every 10 – 15 minutes
Driven: ROBIN-SUBARU gasoline driven engine 4.2kW/ 6.0 hp
Filling Connection: One filling hose with INT or DIN valve
Refill Time: 10 Liter (70cu.ft.) cylinder in app. 20 min. from 0-3000 psi/200 bar
Breathing air purification in accordance with EN 12021
Dimensions (LxWxH): 63x40x42 cm
Weight: ±41 kg
