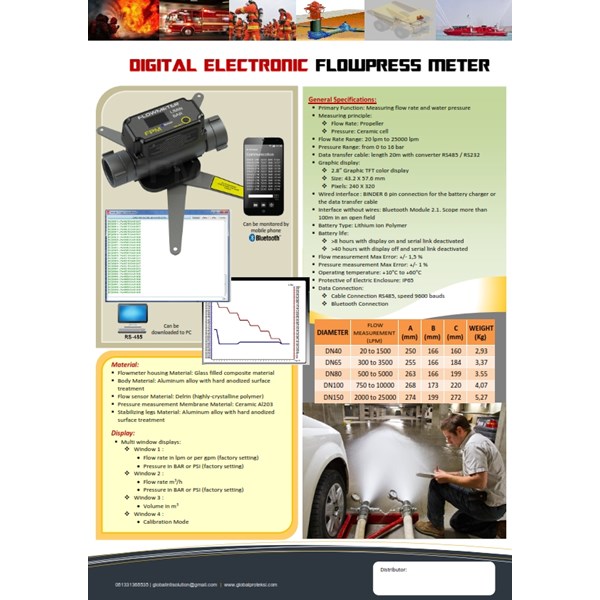

Detail DIGITAL ELEKTRonIK FLOWPRESS METER
DIGITAL MULTIMETER ELEKTRonIK FLOWPRESS METER
General Specifications:
Primary Function: Measuring flow rate and water pressure
Measuring principle:
Flow Rate: Propeller
Pressure: Ceramic cell
Flow Rate Range: 20 lpm to 25000 lpm
Pressure Range: from 0 to 16 bar
Data transfer cable: length 20m with converter RS485 / RS232
Graphic display:
2.8” Graphic TFT color display
Size: 43.2 X 57.6 mm
Pixels: 240 X 320
Wired interface : BINDER 6 pin connection for the battery charger or
the data transfer cable
Interface without wires: Bluetooth Module 2.1. Scope more than
100m in an open field
Battery Type: Lithium Ion Polymer
Battery life:
>8 hours with display on and serial link deactivated
>40 hours with display off and serial link deactivated
Flow measurement Max Error: +/- 1,5 %
Pressure measurement Max Error: +/- 1 %
Operating temperature: +10°C to +60°C
Protective of Electric Enclosure: IP65
Data Connection:
Cable Connection RS485, speed 9600 bauds
Bluetooth Connection
